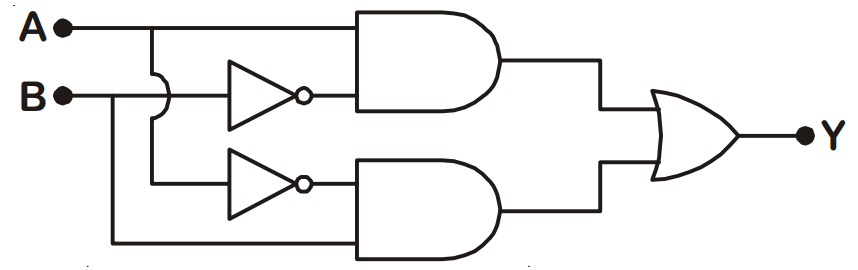

In the combination of the following gates the output Y can be written in terms of inputs A and B as
Explanation
The circuit is an XOR gate: $Y = A\overline{B} + \overline{A}B$.

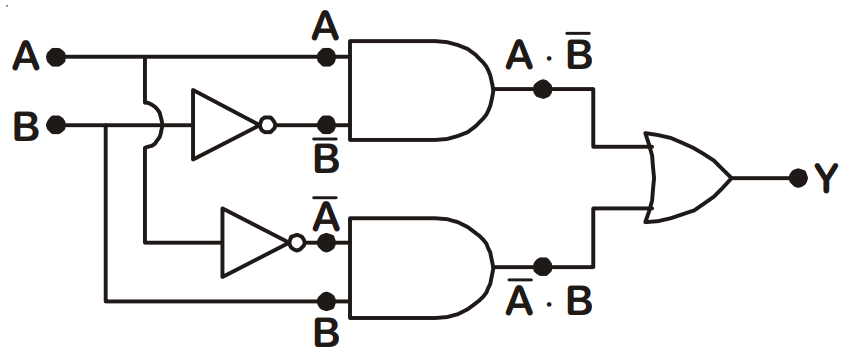

Detailed Solution
Upper AND gate receives A and $\overline{B}$: output $A\cdot\overline{B}$
Lower AND gate receives $\overline{A}$ and B: output $\overline{A}\cdot B$
OR gate: $Y = A\cdot\overline{B} + \overline{A}\cdot B$
