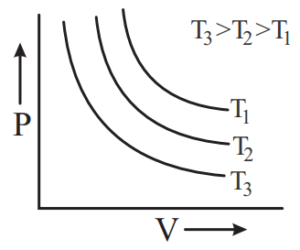

Which amongst the following options is correct graphical representation of Boyle's Law?
Explanation
$P=nRT\cdot\frac{1}{V}$ gives a straight line through the origin on a P vs $\frac{1}{V}$ plot.
Detailed Solution
$PV=nRT$
$P=nRT\cdot(1/V)$

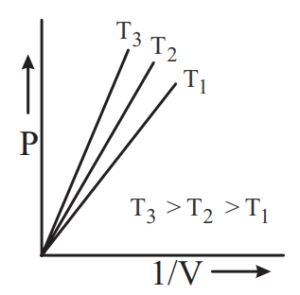

Plot of $P$ vs $(1/V)$ would be a straight line passing through origin having slope $=nRT$.
At high temperatures, $P$ vs $(1/V)$ would have greater slope.
