  1. 1 2024 Semiconductor Electronics: Materials, Devices and Simple Circuits
    Consider the following statements A and B and identify the correct answer:

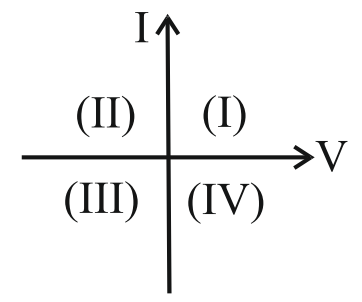

    A. For a solar-cell, the I-V characteristics lies in the IV quadrant of the given graph.
    B. In a reverse biased pn junction diode, the current measured in ($\mu A$), is due to majority charge carriers.
    A Both A and B are correct.
    B Both A and B are incorrect.
    C A is correct but B is incorrect.
    D A is incorrect but B is correct.
