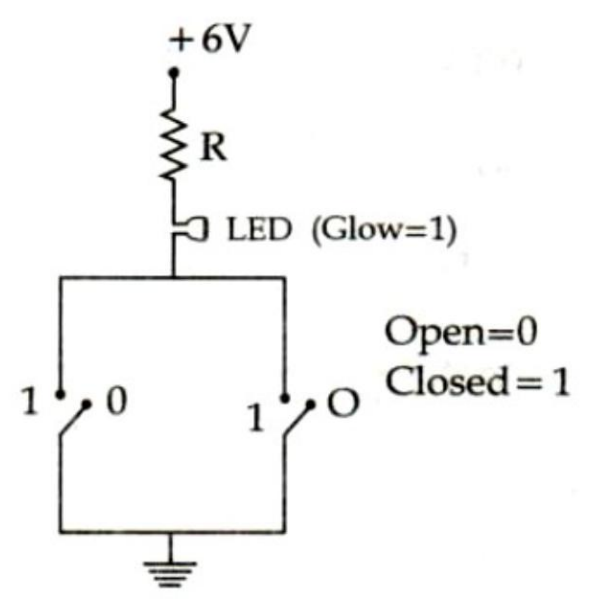

Identify the equivalent logic gate represented by the given circuit:Detailed Solution
When both switches are open (0, 0), no current flows and the LED does not glow (output 0). For inputs (0, 1), (1, 0) and (1, 1) at least one parallel path is closed, current flows and the LED glows (output 1). This is the truth table of an OR gate.
