Gravitational field of a spherical shell
Concepts tested here
- Field inside and outside a shell
All Questions
2012 AIPMT-MAINS 1 question
-

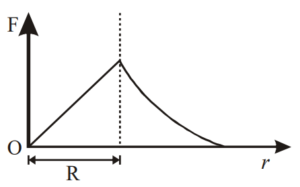

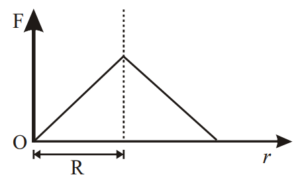

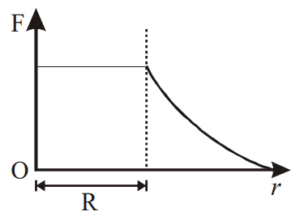

Which one of the following plots represents the variation of gravitational field on a particle with distance r due to a thin spherical shell of radius R? (r is measured from the centre of the spherical shell)Inside a thin spherical shell (r < R) the gravitational field is zero.
At the surface it jumps to its maximum value $\frac{GM}{R^2}$.
Outside (r > R) it falls off as $\frac{GM}{r^2}$.

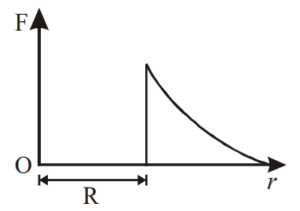

So the graph is zero up to r = R, rises abruptly at R and then decreases as $\frac{1}{r^2}$.
