Acceleration in SHM
Concepts tested here
- a–t graph of SHM
All Questions
2014 AIPMT 1 question
-

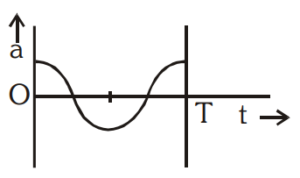

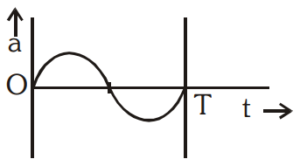

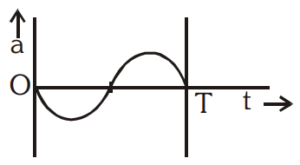

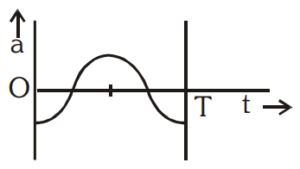

The oscillation of a body on a smooth horizontal surface is represented by the equation, $X = A\cos(\omega t)$ where X = displacement at time t, $\omega$ = frequency of oscillation. Which one of the following graphs shows correctly the variation of 'a' with 't'?$x = A\cos\omega t$
$v = \frac{dx}{dt} = -A\omega\sin\omega t$
$a = \frac{dv}{dt} = -A\omega^2\cos\omega t$
So the a–t graph is a negative cosine curve: it starts at $-A\omega^2$ at t = 0.
