Refraction – real and apparent depth
Concepts tested here
- apparent-depth-slab-thickness
All Questions
2016 Phase II 1 question
-
An air bubble in a glass slab with refractive index 1.5 (near normal incidence) is 5 cm deep when viewed from one surface and 3 cm deep when viewed from the opposite face. The thickness (in cm) of the slab is:

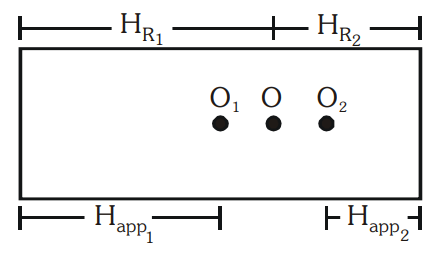

Real depths from both faces add up to the thickness.
$H_{app} = \frac{H_R}{\mu_g} \Rightarrow H_R = \mu_gH_{app}$
Thickness $= H_{R_1} + H_{R_2} = \mu_g[H_{app_1} + H_{app_2}] = \frac{3}{2}[5 + 3] = 12$ cm
