Impulse
Concepts tested here
- Area under F–t graph
All Questions
2014 AIPMT 1 question
-

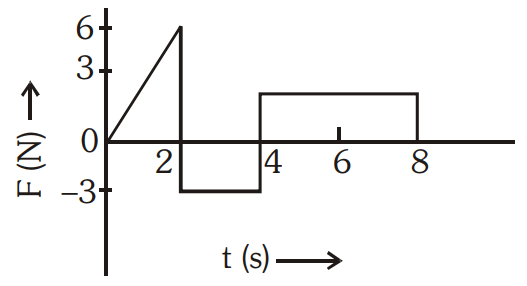

The force 'F' acting on a particle of mass 'm' is indicated by the force-time graph shown below. The change in momentum of the particle over the time interval from zero to 8 s is:
Change in momentum $\Delta p = \int F\,dt$ = area under the F–t graph
$= \frac{1}{2}\times 2\times 6 - 3\times 2 + 4\times 3 = 12$ N s
