Connected Bodies: Atwood Machine
Concepts tested here
- Acceleration of masses over a pulley
All Questions
2000 AIPMT 1 question
-

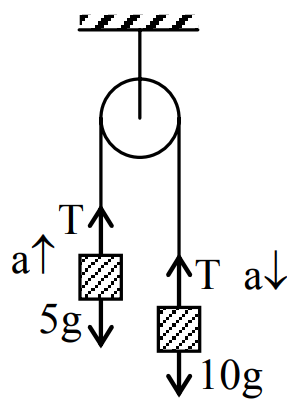

Two masses as shown are suspended from a massless pulley. Calculate the acceleration of the system when masses are left free :
The heavier 10 kg mass moves down and the 5 kg mass moves up with the same acceleration a. Let T be the tension in the string.
For the 10 kg mass: $10g - T = 10a$
For the 5 kg mass: $T - 5g = 5a$
Adding: $5g = 15a$
$a = \dfrac{g}{3}$
(In general $a = \dfrac{(m_1 - m_2)g}{m_1 + m_2}$.)
